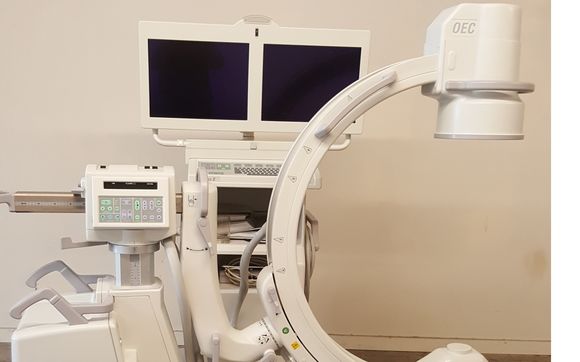

RECONDITIONED OEC 9900 ELITE C-ARM. Workflow Efficiency. Simple user interface with touchscreen reduces procedure time to improve efficiency. Flat panel monitors on an articulating arm allow viewing of images from anywhere in the room. Superb mechanical C-arm design features. Manual digital brightness and contrast control. The Elite & Elite CFD are both more expensive new then their new GE OEC 9900 counter parts, with Flat Detector models starting in the high $100 thousands and refurbished systems are simply not available yet do to them just being released the end of last year (on average its take 3-5 years before you’ll see refurbished systems available). With the OEC 9900 Elite: Improve your workflow and productivity. OEC C -arms are consistently rated by customers as easy-to-use because of the intuitive user interface and software design. OEC University; Ultrasound Education. OEC 9900 Elite Main Brochure LR-990018-02. Please fill out the form below to access the requested information. Technology has developed, and reading Oec 9000AMTMACHINESYSTEMS.COM Ebook and Manual Reference Oec-9000 c-arm repair Oec diasonics 9000 service manual by DebraWebb3500 - Issuu 9900 elite, Imagination at work. Read online or download PDF. GE Healthcare OEC 9900 Elite User Manual. Manuals Directory ManualsDir.com - online owner manuals library. GE OEC 9900 Elite C-Arm With Continual High Level Fluoroscopy. GE is a trusted brand that has saturated the medical equipment market. They produce intuitive, well-working medical equipment. C-arms are large pieces of imaging equipment that take captures of inside the body.
- Oec 9900 Elite User Manual Download
- Oec 9900 Elite User Manual Software
- Oec 9900 Elite Service Manual
- Ge Oec 9900 Training Manual

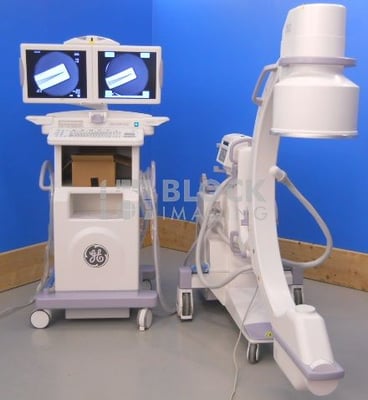

The OEC 9900 Elite is designed to deliver superb clinical images during both simple and challenging imaging cases, with fast and easy positioning.
See which configuration – based on II size, type of C and optional features – will best meet your clinical needs.
Oec 9900 Elite User Manual Download
Imaging profiles optimize your image to compensate for bone and tissue. With the exclusive SmartView pivot joint, you can capture true lateral views regardless of the imaging angle, minimizing the need for repeated exposures. Features like articulating hi def monitors, SmartMetal distortion control, and patented DRM technology mean any OEC 9900 Elite you choose will provide superb images.
Request More Info
Fill out the form below, and we’ll get back to you quickly:
* Case Sensitive
Description
Generator
- 60kHz high frequency
- 15kW power
- Up to 120kVp
- Up to 75mA for radiographic film exposure
- Continuous high level fluoro (HLF) up to 20mA
- Digital spot up to 75mA
- Digital cine pulse
- 15 or 30 pulses per second, 60 Hz
- 12 or 25 pulses per second, 50 Hz
- Up to 150mA
- 10ms pulse width
- Full powerfrom standard wall outlet
- Patented battery buffered design
X-ray Tube
- Rotating anode X-ray tube
- 0.3 and 0.6 nominal focal spots
- Anode heat capacity: 300,000 HU
- Anode cooling rate: 85,000 HU/min.
- Housing heat capacity: 1,600,000 HU
- Housing cooling rate:
- 9” I.I. Super C- 22,500 HU/min
- 12” I.I. – 22,500 HU/min
Digital Image Rotation
- Digitally adjusts image display
- Automatic image update
- Image rotation
- Image reversal (side-to-side)
- Image invert (top-to-bottom)
- Image positioning without additional exposure
Preview Collimator
- On-screen collimator position indication
- PreView iris collimator
- PreView Tungsten rotatable double leaf collimator
- Adjusts collimators without X-ray exposure
Fluoro Mode
- kVp range: 40 -120
- mA range:
- 0.2 – 10 normal mode
- 1.0 – 20 HLF (high level fluoro)
- Auto and manual fluoro modes
- AutoTrak ABS varies mA, kVp, camera gain
Pulsed Fluoro Mode
- kVp range: 40 – 120
- mA range: 0.2 – 10
- Pulse rate: 1, 2, 4, 8
- Pulse width: 25 or 50ms
- AutoTrak ABS, mA, kVp, camera gain
- Reduces X-ray dose to patient and operator
High Level Pulsed Fluoro
- kVp range: 40 – 120
- mA range: 1 – 40
- Pulse rate: 1, 2, 4, 8
- Pulse width: 25 or 50ms
- AutoTrak ABS, mA, kVp, and camera gain
Digital Spot Mode
- kVp range: 40 – 120
- mA range: Up to 75
- Automatic exposure termination and automatic image save
Radiographic Mode
- mA range: up to 75
- mAs range: up to 300
- Computer controlled exposure time
- Optional film cassette holder
- 10” x 12” (24cm x 30cm) for 9” I.I.
- 14” x 14” (35cm x 35cm) for 12” I.I.
Video Imaging System
9″ Image Intensifier
- Tri-mode 9”/6”/4.5” (23cm/15cm/11cm) image intensifier
- Minimum central resolution (at monitor):
- 9” (23cm): 2.2 lp/mm
- 6” (15cm): 3.0 lp/mm
- 4.5” (11cm): 3.5 lp/mm
- DQE: 65% (typical)
12″ Image Intensifier
Oec 9900 Elite User Manual Software
- Tri-mode 12”/9”/6” (31cm/23cm/15cm) image intensifier
- Minimum central resolution (at monitor):
- 12” (23cm): 1.6 lp/mm
- 9” (15cm): 2.2 lp/mm
- 6” (11cm): 2.6 lp/mm
- DQE: 65% (typical)
Oec 9900 Elite Service Manual
Precision Imaging with Dynamic Range Management (DRM)
- Preset Imaging Profile: Orthopedic
- Enhances features of interest while attenuating background noise
AutoTrak Automatic Brightness Stabilization (ABS)
- Automatically seeks the subject anatomy anywhere within the imaging field and selects the optimum imaging technique
- Automatically adjusts to anatomical size and location
- Provides uniform image quality throughout the entire image
- Simplifies operation
Image Quality Features
- Smart Window
- Dynamically senses the collimator position and automatically adjusts brightness and contrast to produce high image quality
- Smart Metal
- Allows user to adjust automatic brightness and contrast sensitivity levels to metal
- Provides optimum image quality even when metal is introduced to the field
- Tungsten Collimator
- Dense collimator limits X-ray exposure area
- Reduces scatter radiation
- mproves image detail
Video Camera
- High resolution 1k x 1k CCD camera
- Full frame capture
- Motorized rotation
- On-screen orientation indicator (real-time feedback without fluoro)
- Left-right image reversal
- Top-bottom image invert
Video Display
- Dual 19” (48cm) display anti-glare, LCD flat panel monitors mounted on an articulating arm
- 22” horizontal travel
- 7° up/10° down
- Monitors viewable from all four sides of workstation
- Horizontal and vertical viewing angle 170°
- 1200 CD/M2 maximum brightness
- Touch screen system control
- 1280 x 1024 high resolution monitors
- Integrated color monitor for display of VGA, DVI, DVI-D, S-VHS, and SDISD formats
